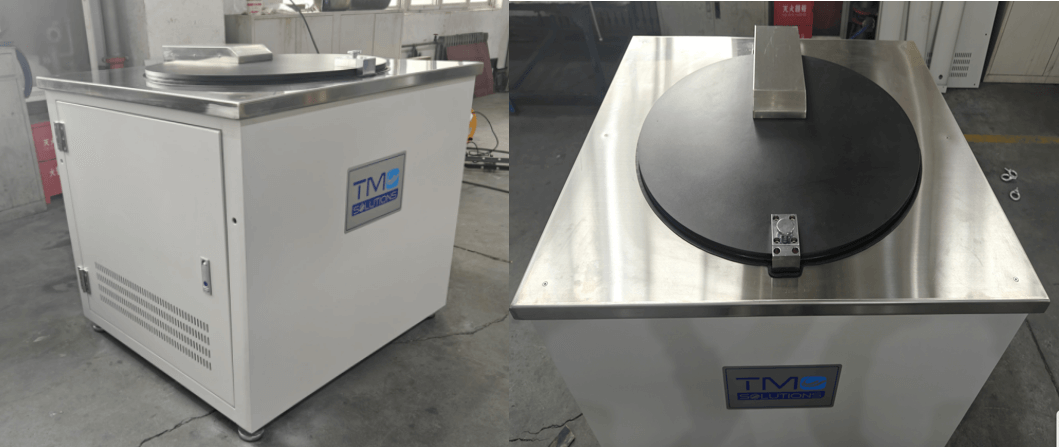

Exploring the Versatile Constant Acceleration Tester, Box Type by TMC Solutions
The box type centrifuge is a standout in laboratory equipment, known for its versatility and capability, making it essential for various scientific and industrial applications.
Fixture Variety and Specialized Configurations
Magnetic Fixture:
The magnetic fixture is a pioneering development by TMC Solutions for high acceleration centrifugal testing of electronic components. Comprising a mother plate and a sub-plate, it supports tests up to 30,000g, making it ideal for evaluating electronic components under extreme conditions. The structure shown in the following figure is a 16-hedral fixture, and the size of each side is 39mmx72mm.
TMC Solutions - Centrifuge Box Type - Magnetic Fixture
Sand Cast Fixture:
This fixture features six stations with sandboxes embedded with quartz sand. Each sandbox weighs less than 350 grams and can withstand accelerations up to 40,000g. It can perform continuous operations at 30,000g for 5 minutes and 40,000g for 1 minute.
TMC Solutions - Centrifuge Box Type - Sand Cast Fixture
Slot Type Fixture (8 slots or customizable):
This high acceleration centrifuge slot type fixture can be customized based on product size. The slot type fixture offers efficient installation and testing of specimens, achieving accelerations up to 30,000g.

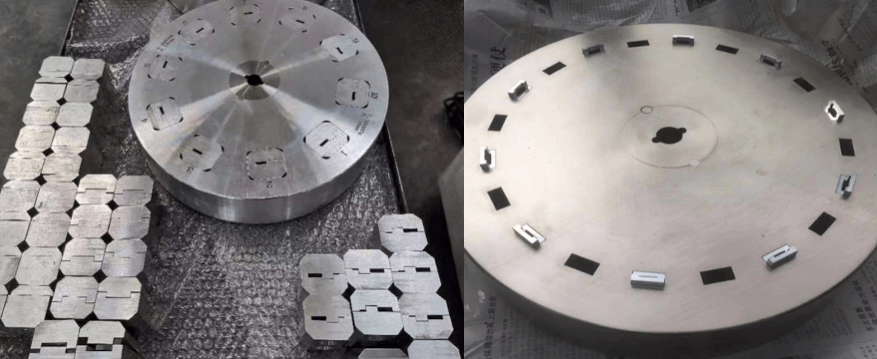

TMC Solutions - Centrifuge Box Type - Slot Type Fixture

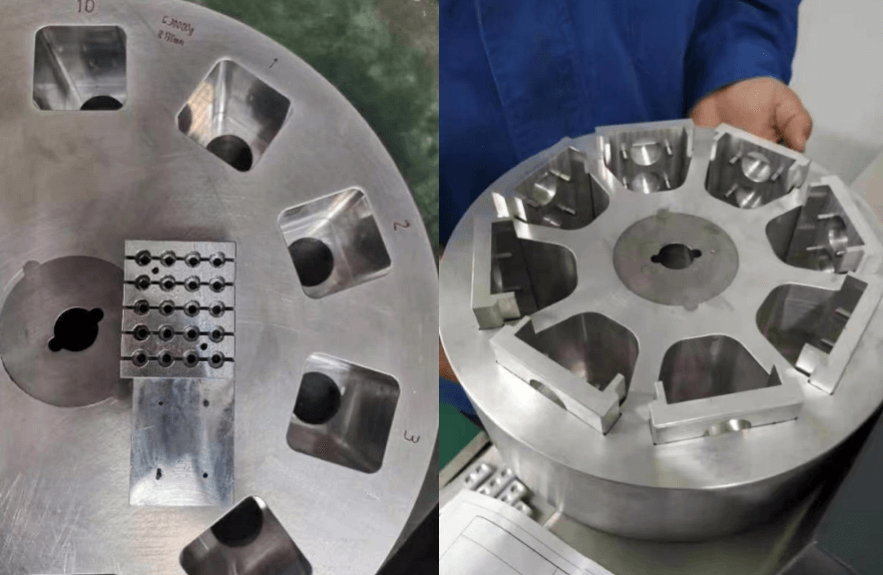

TMC Solutions - Centrifuge Box Type - Slot Type Fixture
Disk Type with Customized Fixture:
Designed to accommodate various shapes and sizes of specimens, this fixture offers flexibility and efficiency, enhancing the testing process.

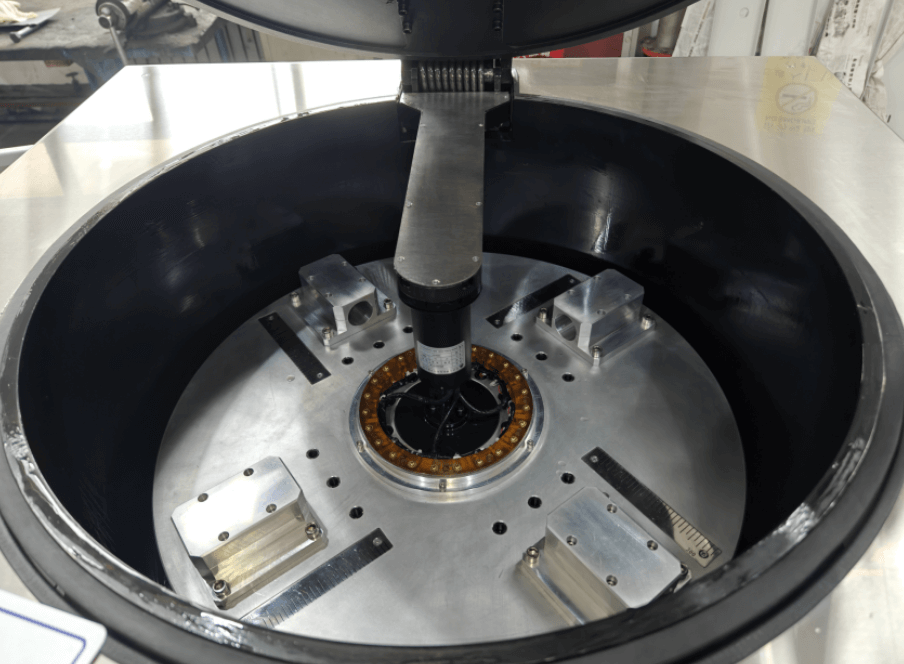

TMC Solutions - Centrifuge Box Type - Disk Type Fixture
TMC Solutions - Centrifuge Box Type - Disk Type Fixture
Applications Across Industries
The Constant Acceleration Tester, box type is a centrifuge controlled by a computer system that ensures high precision and stability. It evaluates the effects of constant acceleration on microelectronic devices and identifies structural and mechanical defects not detectable during shock and vibration tests. This makes it valuable for high-stress tests, screening during the manufacturing process, and detecting below-nominal structural components.
Advanced Features and Benefits
Computer Control and Data Acquisition System:
Complete constant acceleration stability control of testing machine system. The system, composed of a computer, board, monitor, and printer, handles test parameter settings, data acquisition, proportional integration operations, signal acquisition, and system security protection.
Speed Measuring Device:
In order to ensure the smooth running of the testing machine system and speed accuracy and real-time, we use a high-precision rotary encoder, which uses high-performance magnetic induction technology to convert the rotating motion of the magnet into a pulse output, which can accurately measure the speed and improve the control accuracy of the system. It has strong anti-seismic, oil proof, dust proof, water proof, high temperature resistance and other properties, suitable for harsh working environment.
Frequency Converter Drive System:
We use high performance vector control inverter as motor drive device. This kind of high performance, multi-functional unit series inverter has the advantages of high power factor, high reliability, high efficiency, low harmonic content, low loss, easy maintenance, and small footprint.
Hardware Drive System Protection:
The drive device has a variety of protection functions such as over current, over voltage, under voltage, input and output phase loss, output short circuit, output ground, overheating, motor overload, external fault, analog input drop, stall prevention, motor PTC or Pt100 overheating protection. At the same time, its unique automatic voltage adjustment (AVR) function can cope with when the grid voltage changes within a certain range, and automatically keep the output voltage constant to ensure the stability of the system.
TMC Solutions' box type centrifuge exemplifies advanced reliability testing equipment, providing precise and versatile testing capabilities essential for today’s high-demand scientific and industrial applications.
For more details, contact us today and explore how our centrifugal constant acceleration test systems can elevate your testing processes.
