Understanding Shock Testing and Shock Response Spectrum: Key Insights for Ensuring Product Reliability
In the dynamic and ever-evolving world of electronic and mechanical products, ensuring reliability under extreme conditions is crucial. One of the most effective ways to achieve this is through shock testing and analyzing the Shock Response Spectrum (SRS). These methods help manufacturers evaluate how well their products can withstand sudden and intense forces, such as impacts during transportation, ballistic events, or even explosions. This article delves into the essentials of shock testing and SRS, highlighting their importance and application across various industries.
What is Shock Testing?
Shock testing involves subjecting a product to a series of controlled shocks to evaluate its resistance and reliability. The key parameters in shock testing are:
Pulse Type: The waveform of the applied shock, which can be a half-sine wave, sawtooth wave, triangle wave, square wave, or trapezoidal wave.
Pulse Width: The duration of the shock, typically measured in milliseconds.
Amplitude: The intensity of the shock, often expressed in terms of acceleration (Gs).
A "shock" in this context refers to the application of a high-magnitude external force over a very short period. This can include mechanical impacts like drops, collisions, and slaps, as well as environmental phenomena such as ballistic and explosive impacts. The shock test is sometimes referred to as the "impact test." The type of pulse used in the test can be compared to the type of strike a martial artist might deliver, whether it's the forceful and direct blows of Shaolin's Changquan or the smooth, flowing movements of Wudang's Tai Chi. The purpose of shock testing is to simulate these real-world conditions to verify the product’s ability to withstand such forces.
Given that the duration of these shocks is extremely short—ranging from a few milliseconds to tens of milliseconds—the forces involved are often immense. For example, mechanical impacts can generate peak accelerations ranging from tens to hundreds of Gs, while ballistic and explosive impacts can reach peak accelerations of tens of thousands to hundreds of thousands of Gs.
The Role of Shock Response Spectrum (SRS)
The Shock Response Spectrum (SRS) is a critical tool in evaluating how a product responds to shock. SRS is a curve that plots the response of a series of single-degree-of-freedom systems, each with a different natural frequency, when subjected to a shock. Essentially, it measures how the product "responds" to the shock, providing a detailed analysis of the product’s structural integrity and potential failure points.
The SRS approach emphasizes the consequences of the shock rather than just the impact itself. It considers the final response spectrum result—how the product behaves under shock—rather than just the initial shock parameters. This makes it a more comprehensive method for assessing product reliability.
For example, in aerospace, aviation, and shipbuilding industries, where products are often exposed to extreme conditions, understanding the SRS is vital. It ensures that the product can withstand not only the initial shock but also the subsequent stresses that may lead to failure over time.
Advanced SRS Testing Techniques

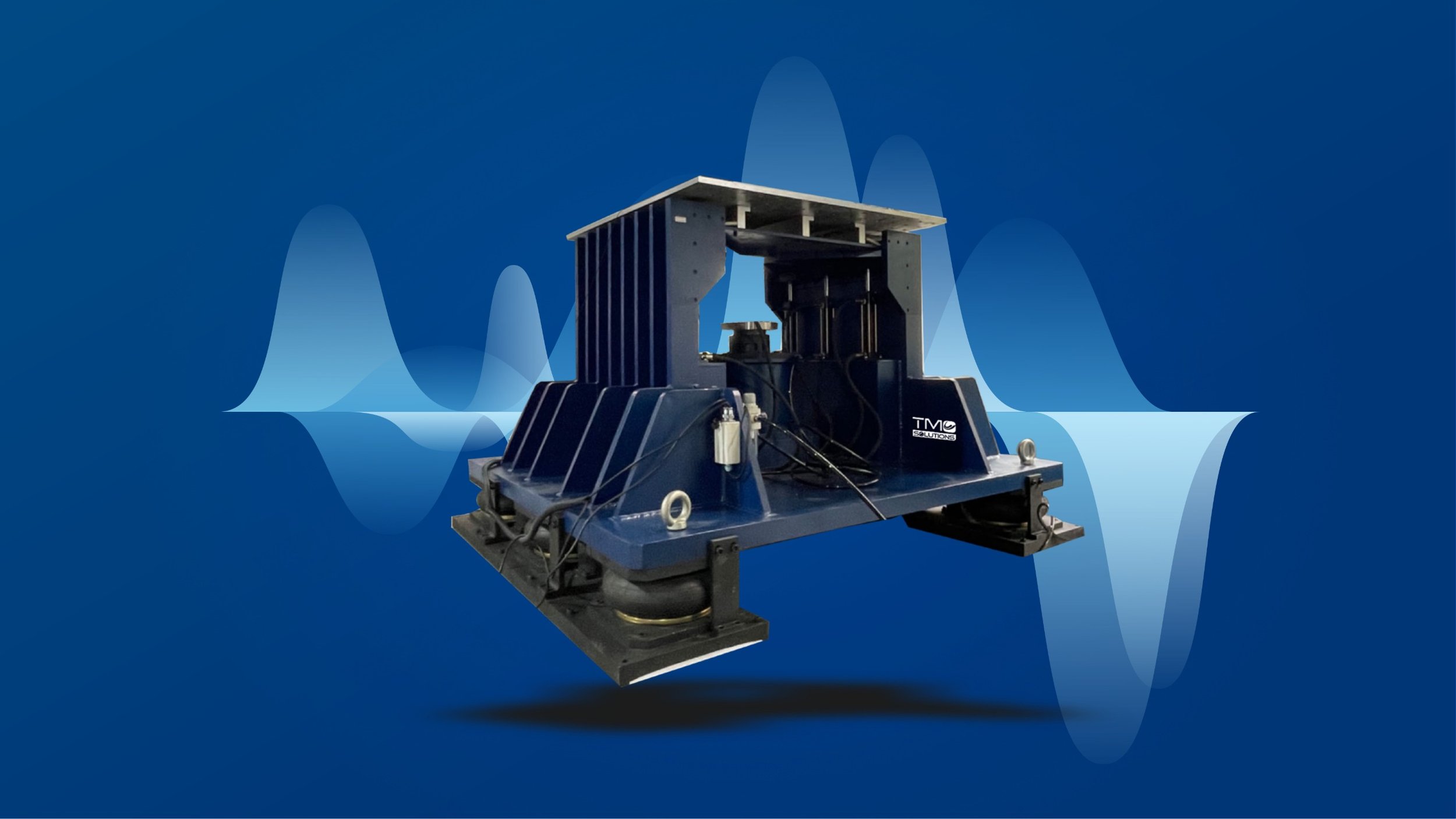

At TMC Solutions, we utilize advanced techniques for generating high-energy impacts for SRS testing. Our systems use compressed gas energy to drive an impact hammer, which then impacts a resonance plate, producing the necessary high-energy shock. This method offers several advantages over traditional pendulum-based SRS testers, including:
Higher Energy Output: Ensures that even the most resilient products can be thoroughly tested.
Stable Performance and High Reliability: Guarantees consistent and repeatable results.
Convenient Adjustment: Allows for easy calibration and setup, tailored to specific testing requirements.
Safety and Environmental Protection: Minimizes risks and ensures a safer testing environment.
These features make our SRS testing solutions particularly suited for industries where product failure is not an option, such as aerospace, aviation, and shipbuilding.
Why Shock Testing and SRS are Essential
Shock testing and SRS analysis are indispensable in today’s manufacturing processes. They provide crucial insights into the durability and reliability of products, helping manufacturers identify potential weaknesses before they become critical failures in the field. By understanding how a product responds to shock, manufacturers can make informed decisions about materials, design, and production processes, ultimately leading to more robust and reliable products.
At TMC Solutions, we are committed to providing cutting-edge testing solutions that help our clients ensure their products meet the highest standards of reliability and performance. Whether you are in aerospace, automotive, electronics, or any other industry that demands rigorous testing, our shock testing and SRS analysis services can help you achieve your goals.
For more information on how our testing solutions can benefit your products, contact us today.
