Understanding Sawtooth Wave Testing for Product Durability: The Science Behind Shock Testing
In the field of mechanical testing, ensuring that a product can withstand the harsh conditions it may face during its lifecycle is crucial. One critical test for this is shock testing, which simulates the physical shocks that a product might experience during transportation, handling, or use. This article delves into the post-peak sawtooth wave shock test, a method used to assess how products perform under inelastic conditions.
What is a Shock Test?
Shock tests simulate various mechanical impacts such as transportation shocks, external collisions, or even explosion-related shocks to determine a product’s resilience and ability to continue functioning afterward. The testing is particularly important for industries such as automotive, aerospace, and electronics where products may face extreme conditions.
Understanding the Post-Peak Sawtooth Wave
The post-peak sawtooth wave shock test is a waveform method used in mechanical shock testing to assess a product’s durability. In shock testing, several types of waveforms simulate different impact conditions, with sawtooth waves being one of the most severe.
Unlike other waveforms, such as the half-sine wave that simulates elastic collisions, the sawtooth wave has no recovery stage after deformation.
The post-peak sawtooth waveform is unique in that it creates a sudden drop in acceleration after reaching its peak. This drop represents an inelastic collision, where energy is not recovered, mimicking real-world situations where a product experiences a sudden impact and absorbs the force without rebounding. This means the material or structure being tested suddenly loses its ability to resist deformation, allowing engineers to observe how the product reacts to severe impact.
How the Sawtooth Shock Test Works
Sawtooth shock tests are typically performed using a vertical shock machine. The product is mounted onto the machine's shock table, which is then lifted to a specific height and dropped onto a lead cone. Upon impact, the lead cone deforms, producing a shockwave that travels through the product and the table. This shockwave provides an acceleration that is opposite to gravity, generating the post-peak sawtooth waveform with the following features:
Rapid Acceleration: The acceleration builds up linearly as the lead cone deforms.
Sudden Drop: After reaching peak acceleration, the shock experiences a sudden drop, characteristic of the post-peak sawtooth wave.
No Recovery: Unlike other waveforms like the half-sine wave, the sawtooth wave does not have a recovery period, meaning the product absorbs the shock and the force dissipates.
Key Factors Affecting the Sawtooth Wave Shape
Several parameters influence the sawtooth wave:
Height of the Drop: As the drop height increases, the peak acceleration also increases, while the shock pulse width becomes smaller.
Size and Shape of the Lead Cone: A larger base diameter on the lead cone results in lower peak acceleration but longer pulse width, while a smaller base provides higher acceleration with a shorter pulse.
Cone Angle: Wider cone angles produce higher peak acceleration and a more significant velocity change, making the test more severe.
By adjusting these parameters, engineers can simulate various shock scenarios, providing valuable data on a product’s durability.
Applications of Sawtooth Wave Testing
Sawtooth wave shock testing is used extensively in industries like defense, aerospace, and consumer electronics. Products such as batteries, control units, and sensors often undergo these tests to ensure they meet strict durability standards.
For example, in the defense sector, sawtooth testing can simulate the impact forces experienced by components in missiles or armored vehicles during high-speed maneuvers or collisions. In the electronics industry, this test can simulate the shock a product might face if dropped during transportation, helping manufacturers optimize their designs for shock resistance.
Customizing the Shock Waveform
One of the advantages of the post-peak sawtooth wave shock test is its flexibility. By adjusting parameters such as the drop height and the lead cone size, engineers can create shock profiles tailored to specific products.
Height of the Drop: Increasing the drop height raises the peak acceleration and narrows the shock pulse width.
Lead Cone Shape and Size: The base diameter of the lead cone affects the acceleration. A larger base decreases acceleration but increases the pulse width, while a smaller base increases acceleration with a shorter pulse.
This customization allows for a variety of testing scenarios, ensuring that your product can be tested against the specific conditions it may face in real-world use.
TMC Solutions-sawtooth wave shock test
TMC Solutions-sawtooth wave shock test
Why is Sawtooth Wave Shock Testing Important?
Shock testing, especially using the post-peak sawtooth wave, provides crucial data for manufacturers looking to optimize their product design. Products in industries such as electronics and aerospace must withstand high-impact forces without failing. Without these tests, manufacturers run the risk of releasing products that fail during transportation, handling, or use, which can have catastrophic consequences.
In fact, according to a report by MarketsandMarkets, the environmental test chamber market, which includes shock testing equipment, is expected to grow to $1.4 billion by 2025, reflecting the growing need for reliable and durable products across industries.
By conducting post-peak sawtooth wave shock tests, manufacturers can ensure their products can handle the most extreme conditions and continue to function properly. This testing method provides manufacturers with the data they need to strengthen their designs and enhance product durability.
Safe Lead Block Casting Process for Shock Testing Equipment
When melting and casting lead blocks for shock testing, it’s important to take precautions to ensure safety and product quality. Lead casting produces toxic fumes, so it is critical that the process is performed in a well-ventilated environment, away from combustible materials.
Recasting Lead for Shock Testing

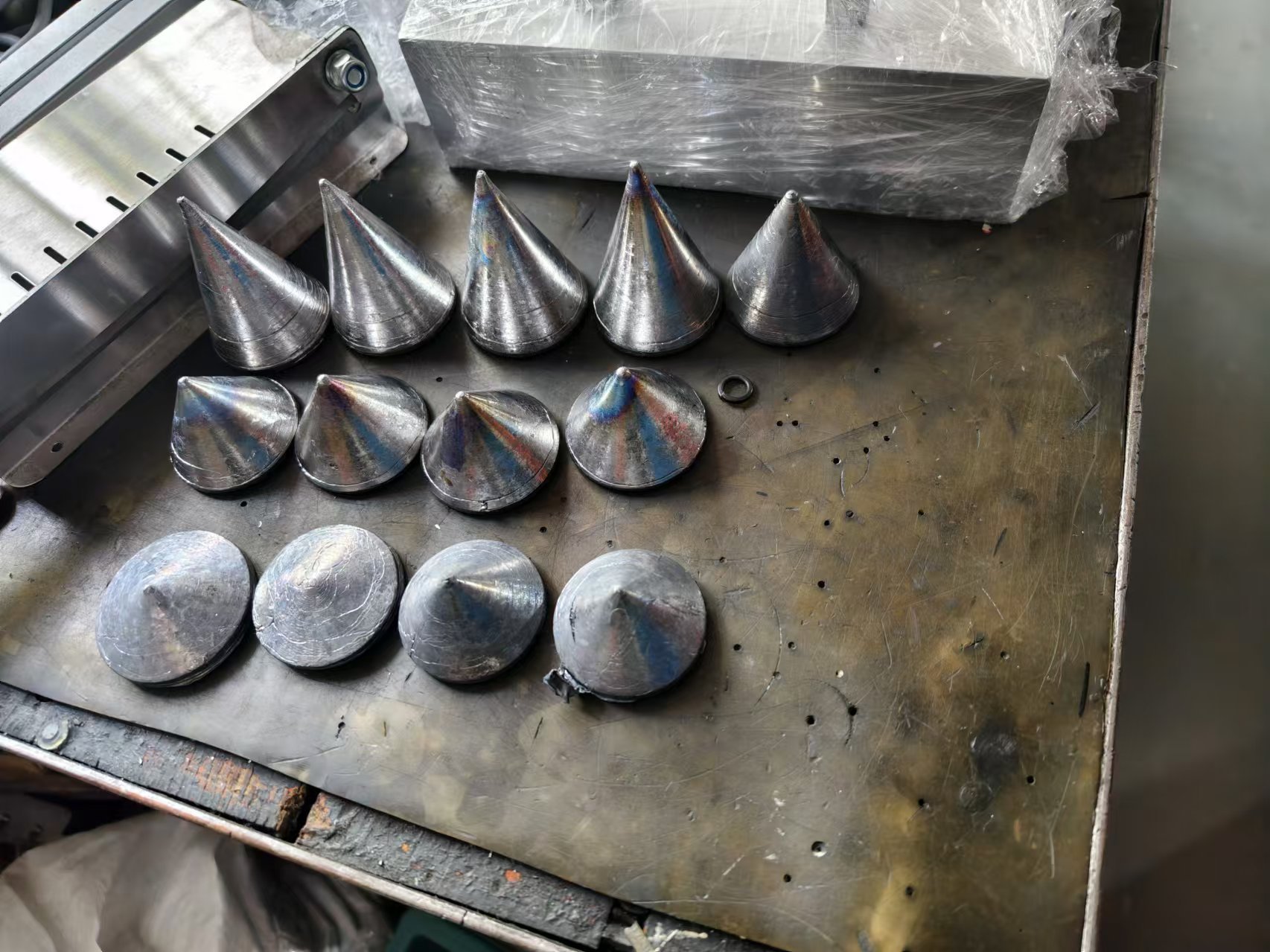

In shock tests, waveform generators like lead cones play a key role in generating precise shock pulses. However, once a lead cone is deformed after testing, it cannot be reused in its current state. The cone must be melted down and recast into its original shape using a mold. This process requires special care due to the melting point of lead, which is 327°C.
Safety Considerations:
Ventilation: Melting lead releases toxic fumes, which can be harmful when inhaled. Therefore, ensure that the process takes place in a spacious, well-ventilated area, ideally with exhaust ventilation to remove harmful gases.
Mold Usage: Once the lead is melted into a liquid state, it is poured into a pre-designed mold to recreate the waveform generator shape. The mold must be heat-resistant and designed to produce accurate, repeatable shapes for testing.
Avoiding Impurities: During the melting process, impurities may form, affecting the quality of the lead. It's essential to ensure the casting process is clean and efficient to avoid contamination.
Key Precautions:
Perform all casting in well-ventilated, open spaces.
Keep flammable materials away from the casting area to reduce the risk of fire or explosions.
Use appropriate protective gear, including masks, gloves, and heat-resistant clothing, to safeguard against lead exposure and high temperatures.
By following these guidelines, lead casting can be performed safely and effectively, ensuring that waveform generators are ready for further shock testing.
Why TMC Solutions is Your Go-To for Sawtooth Shock Testing
At TMC Solutions, we provide advanced shock testing systems capable of performing post-peak sawtooth wave tests and other critical tests to ensure your products meet the highest standards of durability and reliability. Our vertical shock machines are designed to simulate a range of shock scenarios, giving you the data you need to improve your product’s design and performance.
Our team of experts works closely with clients to ensure that every test is tailored to their specific needs, helping you improve product reliability and ensure compliance with industry standards.
Ensuring Product Reliability with Sawtooth Wave Testing
For industries where product failure is not an option, post-peak sawtooth wave shock testing is an essential tool. By simulating inelastic collisions, this testing method helps manufacturers identify weaknesses in their products and make necessary improvements.
At TMC Solutions, we are dedicated to helping our clients achieve the highest standards of product durability through advanced shock testing. Contact us today to learn more about our testing solutions and how we can help you ensure the safety and performance of your products.
If you’re interested in learning more about sawtooth wave shock testing or want to see how TMC Solutions can help improve your product reliability, contact us today for expert advice and tailored testing solutions.
