VT Series Small Vibration Shaker: Compact Solution for Precision Testing
TMC Solutions - VT Series Small Vibration Test System
In industries like aerospace, automotive, electronics, and beyond, ensuring product reliability is essential to maintaining quality and customer satisfaction. One key factor in assessing product durability is vibration testing. TMC Solutions' VT Series Small Vibration Test System is engineered specifically to meet the needs of modern manufacturers seeking a compact, efficient, and reliable solution for vibration testing of smaller components and products.
What is the VT Series Small Vibration Test System?

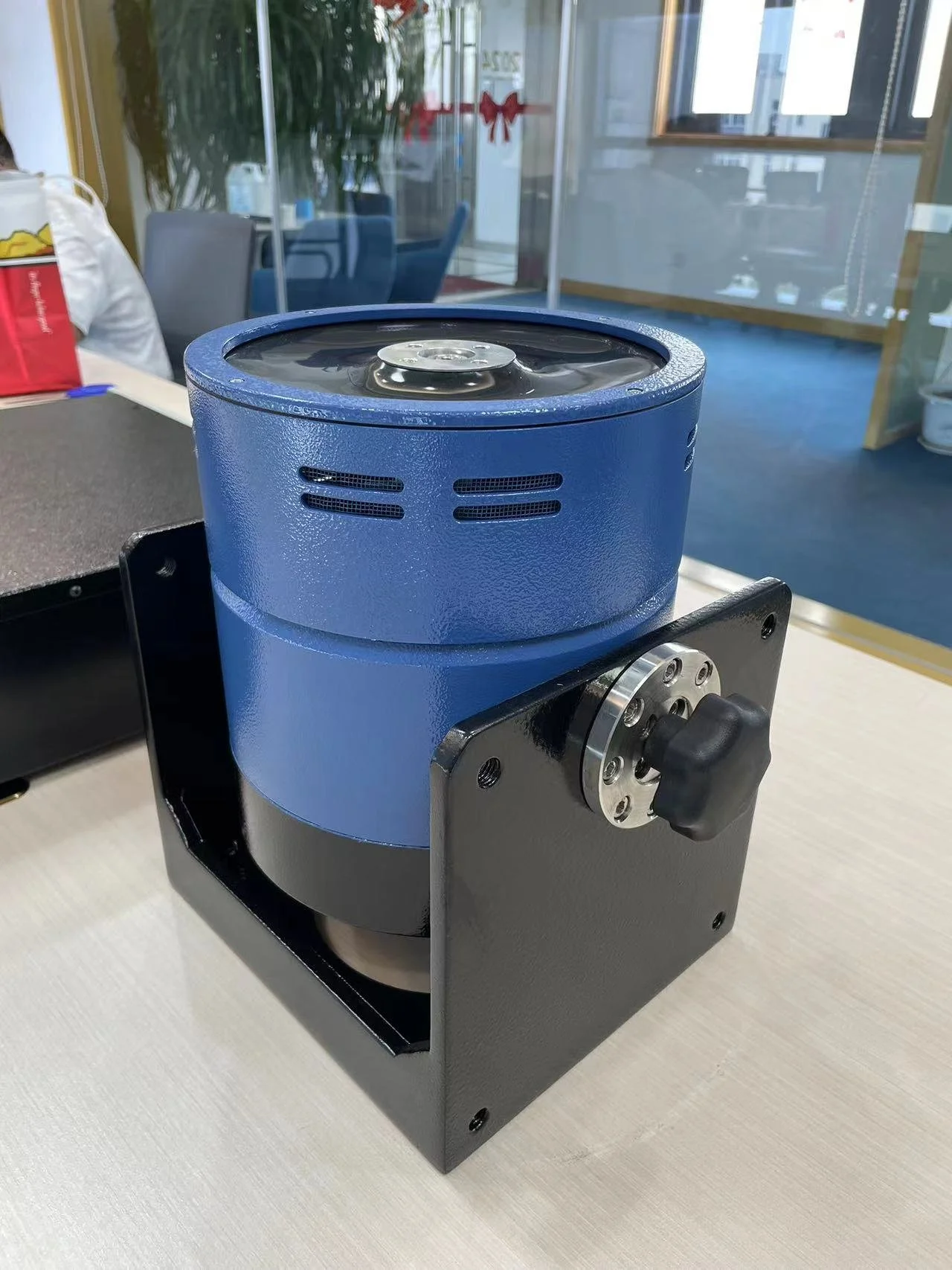

The VT Series Small Vibration Test System is a versatile, lightweight, and portable vibration shaker equipped with a permanent magnet and designed to conduct high-precision vibration tests. This system is perfect for small components that require testing under low vibration magnitude and high vibration frequency, offering reliability and performance that larger systems may not efficiently provide.
VT Series miniature vibration table is composed of drive coil, vibration excitation table, carbon fiber composite elastic support components and magnetic circuit. The ST series power amplifier equipped with the system has the characteristics of high efficiency, high performance and low noise.
Some key features of the VT Series include:
Compact Design: Its small size and portability make it ideal for laboratory use and on-site testing.
Permanent Magnet Technology: The system’s lightweight structure is powered by permanent magnet technology, ensuring an excellent energy-to-volume ratio.
Universal Table Design: The shaker's table can rotate freely, allowing flexible positioning and reduced measurement error.
High Efficiency, Low Noise: Paired with the ST series power amplifier, the VT Series provides high efficiency with minimal noise, ensuring a smooth and quiet operation.
Optional Silent Mode: A silent operation mode and forced air cooling are available to suit the needs of different working environments.
Why Choose the VT Series for Your Testing Needs?
The VT Series Small Vibration Test System is designed for applications that demand precision in vibration testing but don’t require the capabilities of larger shakers. It is particularly useful for:
Testing Small Instruments and Components: Precision products such as micro-electronics often require testing at high vibration frequencies with small installation sizes. The VT Series offers the necessary flexibility and performance for these products.
Modal Excitation Tests: These tests allow manufacturers to evaluate product durability and strength by exposing components to various frequencies of vibration. The VT Series enables highly accurate modal testing for small products.
Stress Screening: For manufacturers who need to ensure their components can withstand extreme operating conditions, the VT Series provides an effective stress screening platform. This ensures any potential design flaws are addressed before the product goes to market.
System Setup and Power Requirements
The VT Series is built with convenience in mind. The system operates on single-phase power, simplifying the setup and connection process. Both the shaker and the cooling blower (where applicable) draw power from the amplifier, streamlining power management.
Smaller models like the VT50 and VT100 rely on natural cooling, making them even more portable, while larger models, such as the VT1000, require forced air cooling for optimal performance. The system also supports flexible mounting options with customizable head expanders, available in round or square shapes to meet the specific needs of various customers.
The small vibration shaker system includes the shaker itself, a power amplifier, and a cooling fan. It doesn't come with a signal source, so you'll need to use your own controller or signal generator for testing.
For the amplifier control, it's simple—just use the up and down buttons to adjust the gain. The operation is straightforward and easy to understand.
Certified Quality and Safety Standards
TMC Solutions recently completed CE certification for the VT and ST series, which includes EMC and LVD directives. These certifications ensure the system meets stringent safety and electromagnetic compatibility standards, offering customers peace of mind. Important switches, buttons, cables, motors, and other key components have been upgraded to CE-compliant devices, making the VT Series not only highly functional but also safe and compliant with international regulations.
Why Vibration Testing Matters
Vibration testing is crucial for manufacturers to assess and ensure the durability, functionality, and safety of their products under real-world conditions. The VT Series Small Vibration Test System helps manufacturers identify flaws in design, materials, or processes, allowing them to improve product reliability before market release.
Whether it’s in the development of electrical connectors, small instruments, or precision components, the VT Series provides the high-frequency vibration testing necessary to help manufacturers optimize their products and meet industry standards.
Final Thoughts
For businesses looking for a small yet powerful vibration testing solution, TMC Solutions' VT Series Small Vibration Test System offers flexibility, precision, and reliability. Its advanced design, portability, and efficient operation make it an ideal choice for small product testing, ensuring that your components perform flawlessly in their intended applications.
If you’re interested in learning more about how the VT Series can enhance your product testing processes, contact us today. Our team is ready to provide expert guidance and help you select the right vibration testing system for your needs.
